Description |
Honda Part Number |
Unit Price |
|

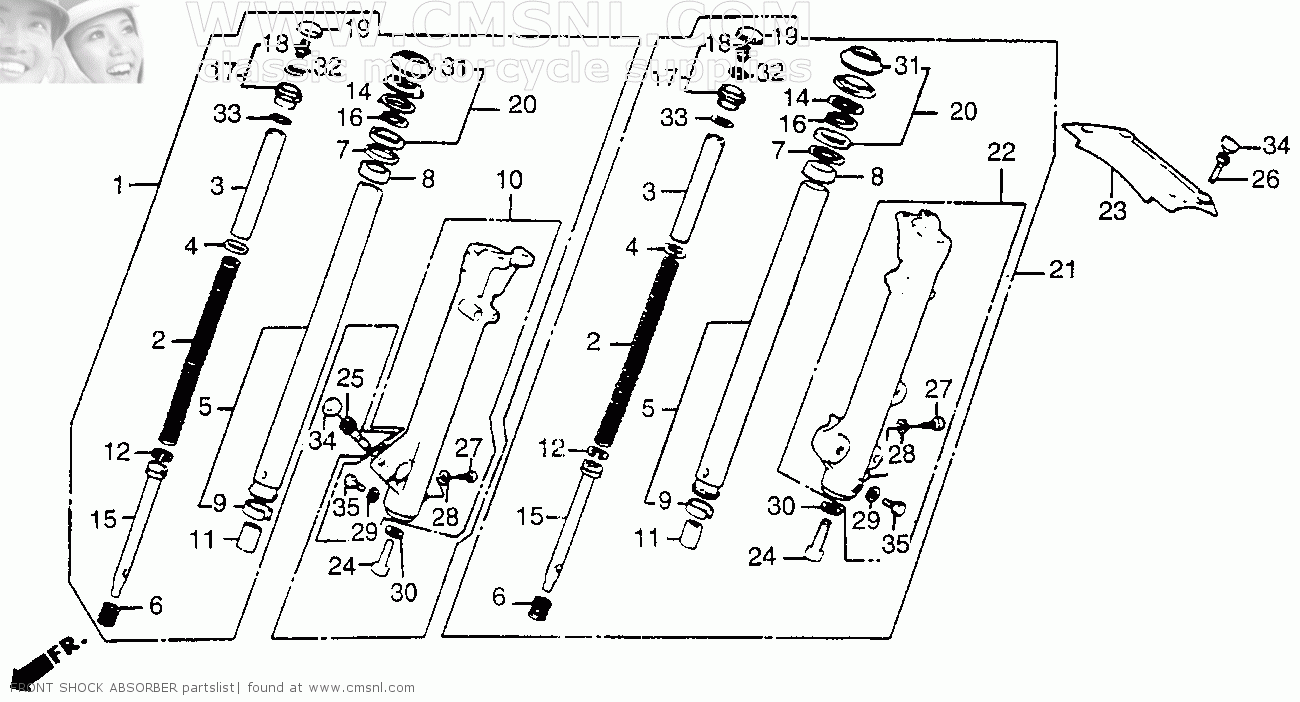

1: (51400-MF5-013) FORK ASSY.,R.FR. |
51400-MF5-003 |
Superceded |
|
1: FORK ASSY.,R.FR. |
51400-MF5-013 |
Not Available |
|
2: SPG.,FR.CUSHION |
51401-MF5-003 |
|
|
3: COLLAR,SPRING |
51402-MF5-003 |
|
|
4: PLATE,SPG.JOINT |
51403-ME4-003 |
|
|
5: PIPE COMP.,FR. |
51410-MF5-003 |
|
|
6: SPG,FR.REBOUND |
51411-MG1-003 |
|
|
7: RING,BACK UP |
51412-461-003 |
|
|
7: (51412-461-003) RING,BACK UP |
51412-461-305 |
Superceded |
|
8: BUSH,GUIDE |
51414-MN4-003 |
|
|
8: (51414-MN4-003) BUSH,GUIDE |
51414-461-003 |
Superceded |
|
9: BUSH,SLIDER |
51415-461-003 |
|
|
10: CASE R.BOTTOM |
51421-ME4-003 |
Not Available |
|
11: PIECE,OIL LOCK |
51432-ME4-003 |
|
|
12: RING,PISTON |
51437-ME4-003 |
|
|
14: WASHER,HOLDER |
51439-MC5-003 |
Not Available |
|
15: PIPE,SEAT |
51440-MF5-003 |
|
|
16: CIRCLIP,INTL,50MM |
51447-461-003 |
|
|
17: BOLT FR.FORK |
51450-ME4-003 |
|
|
18: VALVE COMP.,AIR |
51456-469-013 |
|
|
19: CAP AIR VALVE |
51457-MB1-003 |
|
|
20: SEAL SET,FR.FORK |
51490-KAZ-003 |
|
|
20: (51490-KAZ-003) SEAL SET,FR.FORK |
51490-MC5-305 |
Superceded |
|
20: (51490-KAZ-003) SEAL SET,FR.FORK |
51490-MC5-315 |
Superceded |
|
21: (51500-MF5-013) FORK ASSY.,L.FR. |
51500-MF5-003 |
Superceded |
|
21: FORK ASSY.,L.FR. |
51500-MF5-013 |
|
|
22: CASE L.BOTTOM |
51521-ME4-003 |
|
|
23: (53240-ME4-030) STABI.,FR.FORK |
53240-ME4-000 |
Superceded |
|
23: (53240-ME4-030) STABILIZER FR FOK |
53240-ME4-010 |
Superceded |
|
23: (53240-ME4-030) STABI.,FR.FORK |
53240-ME4-020 |
Superceded |
|
23: BRACE.,FR.FORK |
53240-ME4-030 |
|
|
24: (90153-MB0-405) BOLT,SOCKET,8X17 |
90153-MB0-000 |
Superceded |
|
24: BOLT,SOCKET 8X17 |
90153-MB0-405 |
|
|
25: (90116-383-721) BOLT,8MM |
90116-283-010 |
Superceded |
|
25: BOLT,SOCKET,8MM |
90116-383-721 |
|
|
26: (90152-ME5-000) BOLT,SOCKET,8X28 |
90152-MB1-700 |
Superceded |
|
26: SOCKET,BOLT.8X28 |
90152-ME5-000 |
|
|
29: PACKING, DRAIN |
90543-273-000 |
|
|
30: WASHER,SPL.,8MM |
90544-283-000 |
|
|
31: SEAL,DUST |
91254-KAZ-003 |
|
|
31: (91254-KAZ-003) DUST SEAL,FR.FORK |
91254-461-003 |
Superceded |
|
31: (91254-KAZ-003) DUST SEAL,FR.FORK |
91254-461-004 |
Superceded |
|
33: O-RING,27.7X3.5 |
91357-ME4-003 |
|
|
34: (91455-MB0-010) CAP,SOCK BOLT,8MM |
91455-MB0-000 |
Superceded |
|
34: CAP,SOC.BOLT 8MM |
91455-MB0-010 |
|
|
35: (92101-060-080A) BOLT,HEX 6X8 |
92000-06008-0A |
Superceded |
|
35: BOLT,HEX.,6X8 |
92101-06008-0A |
|
|
