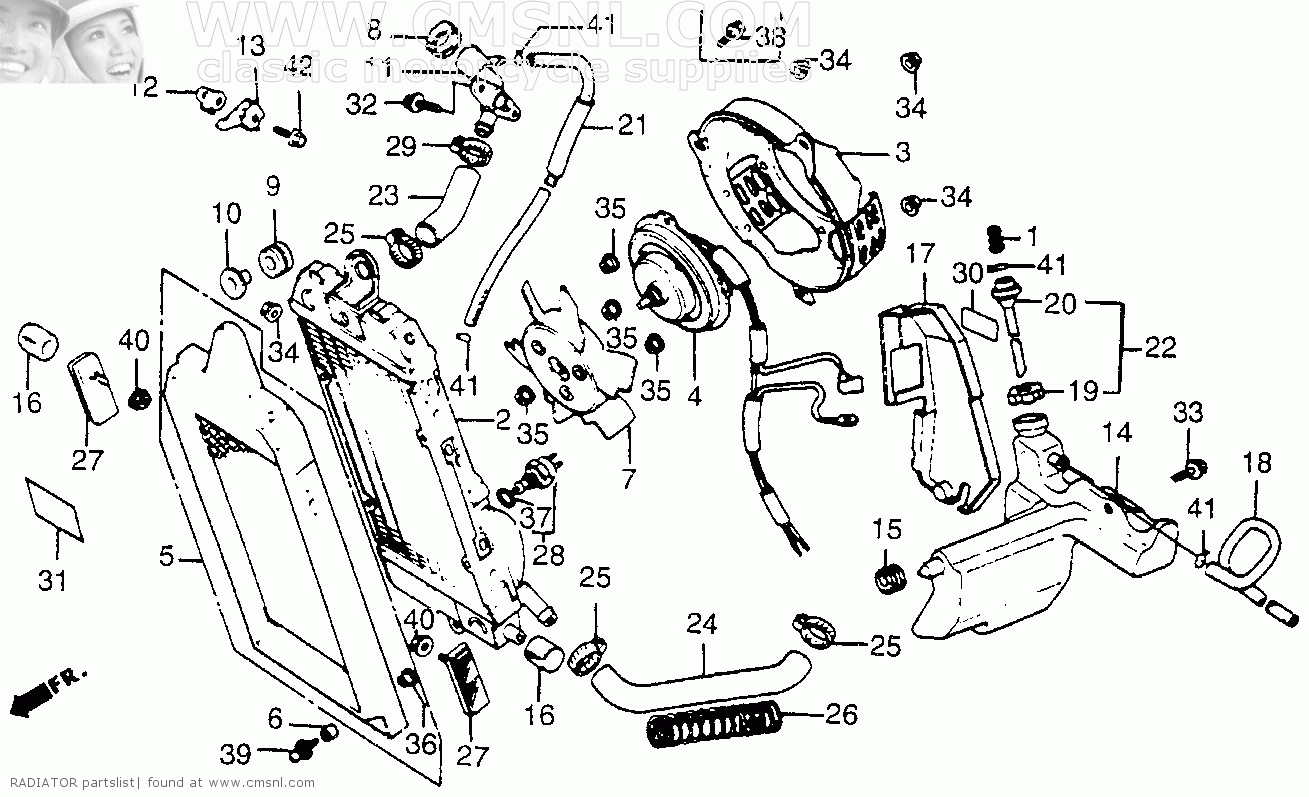

Description |
Honda Part Number |
Unit Price |
|
1: JOINT,TUBE |
17359-419-670 |
|
|
2: RADIATOR COMP. |
19010-MF5-003 |
|
|
3: SHROUD COMP. |
19020-MF5-003 |
|
|
4: (19030-MF5-013) MOTOR ASSY.,FAN |
19030-MF5-003 |
Superceded |
|
4: MOTOR ASSY.,FAN |
19030-MF5-013 |
|
|
5: (19032-MF5-880) GRILLE,RADIATOR |
19032-MF5-000 |
Superceded |
|
5: (19032-MF5-880) GRILLE,RADIATOR |
19032-MF5-750 |
Superceded |
|
5: GRILLE,RADIATOR |
19032-MF5-880 |
Not Available |
|
5: (19032-MF5-880) GRILLE,RADIATOR |
19032-MF8-770 |
Superceded |
|
7: FAN,COOLING |
19040-MF5-003 |
|
|
8: CAP COMP,RADIATOR |
19045-MB0-702 |
|
|
8: (19045-MB0-702) CAP COMP |
19045-MF8-000 |
Superceded |
|
9: RUB,RAD MOUNT |
19051-KA4-000 |
|
|
10: (19052-MB0-000) COLLAR,RAD MT |
19052-KA4-000 |
Superceded |
|
10: COLLAR,RAD.MOUNT |
19052-MB0-000 |
|
|
11: FILLER,NECK |
19106-MF5-003 |
|
|
12: WASHER,FILLER NEC |
19107-MF5-000 |
|
|
13: STAY,FILLER NECK |
19109-MF5-000 |
|
|
14: (19110-MF5-505) TANK,RESERVE |
19110-MF5-000 |
Superceded |
|
14: TANK,RESERVE,SET |
19110-MF5-505 |
|
|
16: MTG,RADIATOR LWR |
19112-MF5-000 |
Not Available |
|
17: (19119-MF5-750) COVER,WATER TANK |
19119-MF5-000 |
Superceded |
|
17: COVER,WATER TANK |
19119-MF5-750 |
|
|
18: TUBE,RESERVE.TANK |
19201-MF5-000 |
|
|
19: CAP,RESERVE TANK |
19204-MF5-000 |
|
|
20: (19205-MF5-010) TUBE,LEVEL |
19205-MF5-000 |
Superceded |
|
20: TUBE,LEVEL |
19205-MF5-010 |
|
|
21: TUBE,RADIATOR RES |
19206-MF5-000 |
Not Available |
|
22: CAP,ASSY RES |
19210-MF5-000 |
|
|
23: HOSE A,WATER |
19503-MF5-000 |
|
|
24: HOSE B,WATER |
19504-MF5-000 |
Not Available |
|
25: (19517-ML7-691) CLAMP,WATER HOSE |
19513-MF5-000 |
Superceded |
|
25: (19517-ML7-691) CLAMP,HOSE 27MM |
19513-MM4-003 |
Superceded |
|
25: CLAMP,HOSE,22-29 |
19517-ML7-691 |
|
|
26: (19515-MF5-010) WIRE A,GUARD |
19515-MF5-000 |
Superceded |
|
26: WIRE A,GUARD |
19515-MF5-010 |
|
|
27: (33741-ME9-673) REFL,FR.REFLEX |
33741-ME9-671 |
Superceded |
|
27: (33741-ME9-673) REFL,FR.REFLEX |
33741-ME9-672 |
Superceded |
|
27: REFLEX REFL.FR. |
33741-ME9-673 |
|
|
28: THERMO SW.ASSY. |
37760-MC7-003 |
|
|
29: CLAMP, WATER HOSE |
50228-MB0-000 |
|
|
30: LEVER.RESEVE TANK |
87507-ME9-670 |
|
|
31: MARK,RADIATOR CAU |
87508-415-670 |
|
|
32: BOLT,SOCKET,6X12 |
90105-460-000 |
|
|
36: WASHER FENDER SET |
90556-044-000 |
|
|
37: O-RING,13.5X1.4 |
91307-PH7-660 |
|
|
37: (91307-PH7-660) O-RING 13.5X1.4 |
91307-611-000 |
Superceded |
|
39: SCREW WASH 6X16 |
93893-06016-07 |
|
|
40: NUT,FLANGE,5MM |
94050-05080 |
|
|
41: CLIP B12,TUBE |
95002-02120 |
|
|
42: (95701-060-2508) BOLT,FLANGE 6X25 |
95700-06025-08 |
Superceded |
|
42: BOLT,FLANGE,6X25 |
95701-06025-08 |
|
|
